CAT6 Ethernet Cable with 6.2mm LSZH Jacket and Color-coded PE Insulation for CMR Rated Installations

  • CAT6 Ethernet Cable with 6.2mm LSZH Jacket and Color-coded PE Insulation for CMR Rated Installations
  • CAT6 Ethernet Cable with 6.2mm LSZH Jacket and Color-coded PE Insulation for CMR Rated Installations
  • CAT6 Ethernet Cable with 6.2mm LSZH Jacket and Color-coded PE Insulation for CMR Rated Installations
Tempat asal Tiongkok
Nama merek AIXTON
Sertifikasi ISO9001,CE,FCC,ROHS,UL
Nomor model AXT6-T2-LSZH
Kuantitas min Order 100 gulungan
Kemasan rincian 305m/1000ft/Kotak, 2 Kotak/Karton, Ukuran Karton: 40*40*50cm, Berat Karton: 28KG
Waktu pengiriman 15-20 hari
Syarat-syarat pembayaran T/T, L/C, Western Union
Menyediakan kemampuan 5000 kotak per bulan

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Jumlah Perilaku 8 Isolasi PE berkode warna
Bahan konduktor dalam 100% tembaga padat Bahan Jaket Luar Lszh
OD Nominal Jaket Luar 6.2mm ± 0.10mm Warna Ungu (Kustomisasi warna)
Dukungan Kecepatan Data 10/100/1000BASE-T Standar ISO/IEC 11801, ANSI/TIA-568-C.2
Menyoroti

6.2mm CAT6 Ethernet Cable

,

Color-coded PE CAT6 Cable

,

CMR Rated Ethernet Cable
Deskripsi Produk
CAT6 Ethernet Cable with 6.2mm LSZH Jacket and Color-coded PE Insulation for CMR Rated Installations 0
CAT6 Ethernet Cable with 6.2mm LSZH Jacket and Color-coded PE Insulation for CMR Rated Installations 1
High-Performance Cat6 UTP Cable

305m network cable with 23 AWG bare copper conductors, designed for indoor use and Fluke certified. This Cat6 UTP cable delivers enhanced bandwidth for broadband, audio, and video applications, making it ideal for office, home, and building installations.

Key Features
  • Pure Bare Copper for faster transmission and longer distance than CCA
  • Tangle and twist-free packaging for easy installation
  • Meter markings every 1m (3.28ft) for convenient measurement
  • Supports PoE, PoE+ and PoE++ (IEEE 802.3af/at/bt)
  • CE, Reach, RoHS certified for environmental compliance
  • CMR Rated (Riser) for between-floor, in-wall, and non-plenum spaces
  • Color-coded cables for easy identification and troubleshooting
  • Tested with Fluke DSX-8000 Versiv CableAnalyzer for guaranteed performance

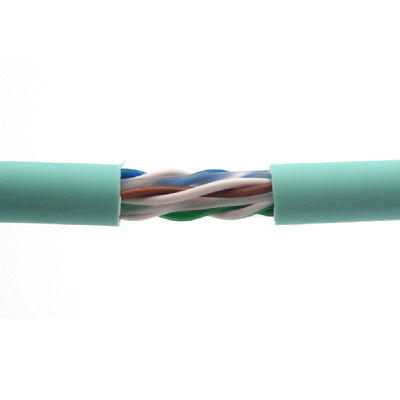

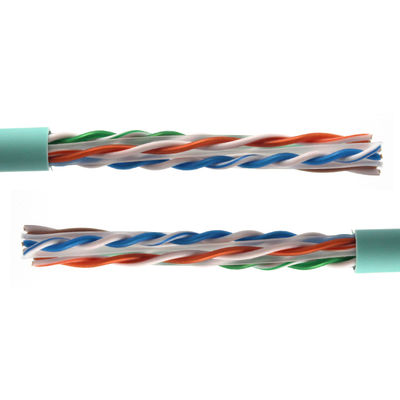

Cable Structure

Bare copper conductors with PE insulation and green LSZH jacket.

Electrical Performance (20℃)
Rated Temperature 75°C
Impedance 100±15Ω (1-100MHz)
Insulation Resistance >5000MΩ·KM DC
Resistance 10.8Ω/100m
Dielectric Strength DC2500V 2S
Pair-to-Ground Capacitance Unbalance 330pF/100M
Technical Specifications
Product Name UNSHIELDED TWISTED PAIR 8 CORE CAT6 UTP CABLE LSZH JACKET
Inner Conductor Material 100% Copper
Diameter 0.57mm ± 0.01mm (23AWG)
Insulation Color-coded PE (Polyethylene) ≥ 0.21mm, 1.03mm ± 0.01mm
Cross Separator Plastic
Shielded Layer Transparent Foil
Twisted Pair Pair 1: Blue, White/Blue
Pair 2: Orange, White/Orange
Pair 3: Green, White/Green
Pair 4: Brown, White/Brown
Outer Jacket Material New LSZH (Rip code, Optional)
Thickness ≥ 0.65mm
Nominal O.D 6.20mm ± 0.10mm
Reference Standard Category 6 UL444, ANSI/TIA/EIA 568B & ISO/IEC11801 Standard
Rated Temperature -20℃ to +70℃
Supports Transmission Digital and analogue voice, data and video signal
Product Images
CAT6 Ethernet Cable with 6.2mm LSZH Jacket and Color-coded PE Insulation for CMR Rated Installations 2 CAT6 Ethernet Cable with 6.2mm LSZH Jacket and Color-coded PE Insulation for CMR Rated Installations 3 CAT6 Ethernet Cable with 6.2mm LSZH Jacket and Color-coded PE Insulation for CMR Rated Installations 4 CAT6 Ethernet Cable with 6.2mm LSZH Jacket and Color-coded PE Insulation for CMR Rated Installations 5
Frequently Asked Questions
CAT6 Ethernet Cable with 6.2mm LSZH Jacket and Color-coded PE Insulation for CMR Rated Installations 6
Q1: What are the advantages of your price?

A1: As a factory-direct manufacturer with professional equipment, we offer competitive pricing that's typically 1%-10% lower than comparable products while maintaining the same quality standards.

Q2: What is your quality advantage?

A2: We adhere strictly to ISO9001 quality management standards, ensuring "Enough Cores, Enough Meters, High Quality, High Performance" in all our products.

Q3: Do you support customized brands?

A3: Yes, we offer professional OEM services and provide free logo customization for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers enjoy AIXTON's stock benefits and year-end dividends. Long-term partners may qualify for global agent status with additional pricing advantages.
